3412C Generator Set
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Documents
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR500 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP 4 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- EU Declaration of Conformity
- EU Declaration of Incorporation
- Eurasian Conformity (EAC)
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Maximum Rating | 900 kVA |
|---|---|
| Minimum Rating | 680 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Voltage | 380 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Prime |
Engine Specifications
| Engine Model | 3412C TA, V-12, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 137.2mm5.4in |
| Stroke | 152.4mm6in |
| Displacement | 27.02l1648.86in³ |
| Compression Ratio | 13:01 |
| Aspiration | TA |
| Fuel System | Pump and Lines |
| Governor Type | ADEM™ A5 |
Generator Set Dimensions
| Length - Maximum | 4125mm162.4in |
|---|---|
| Width - Minimum | 1906mm75in |
| Width - Maximum | 1989mm78.3in |
| Height - Maximum | 1906mm75in |
| Dry Weight - Genset (minimum) | 5461kg12039lb |
| Dry Weight - Genset (maximum) | 5910kg13030lb |

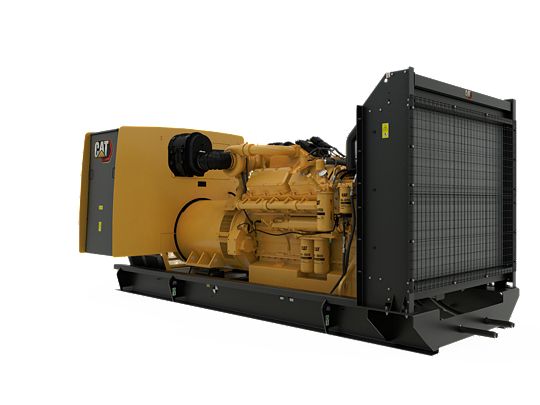

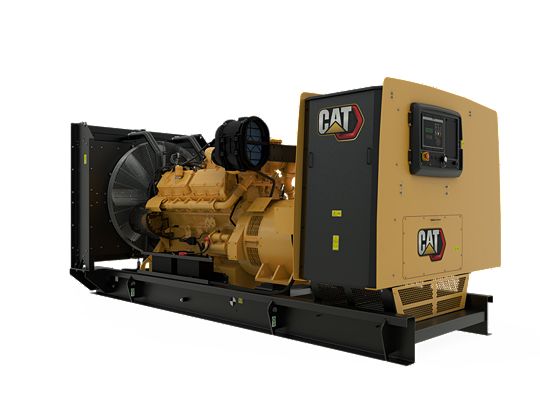

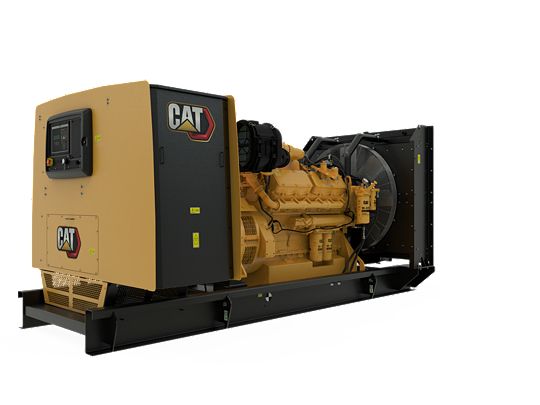

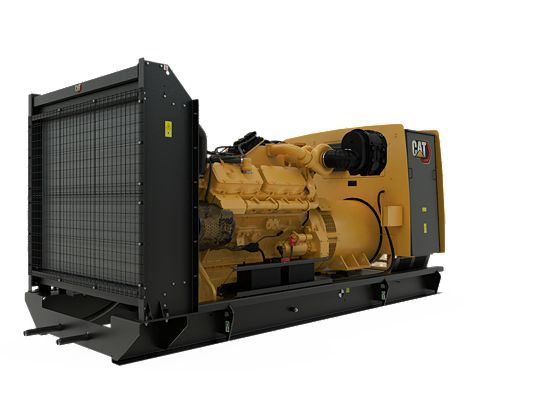

360° Exterior View
360° Exterior view. Double click on the image to zoom in on any area of the product.
