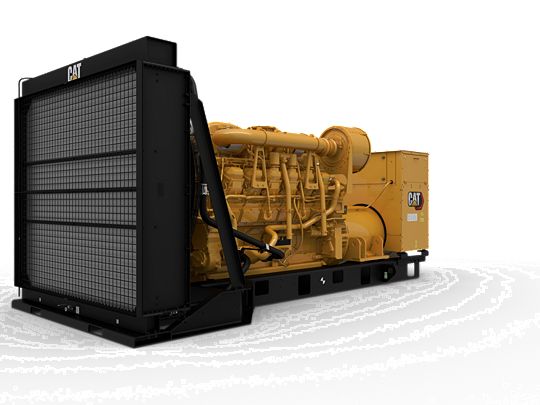

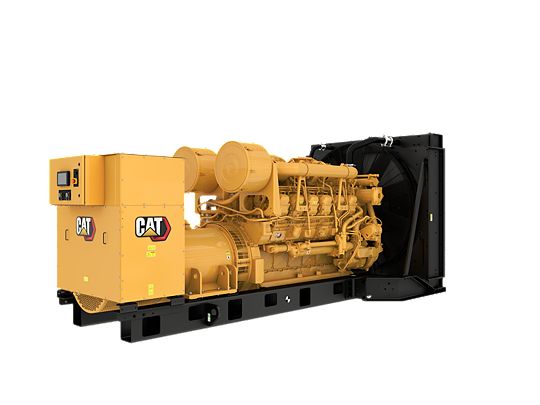

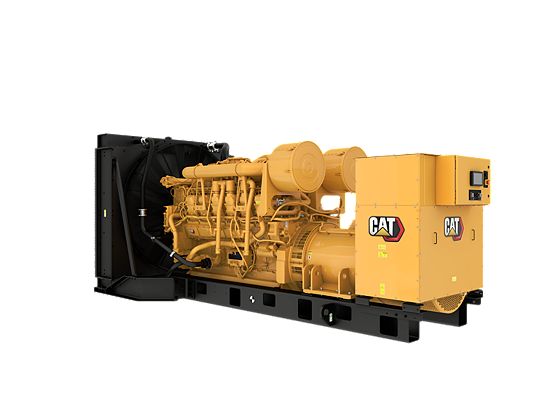

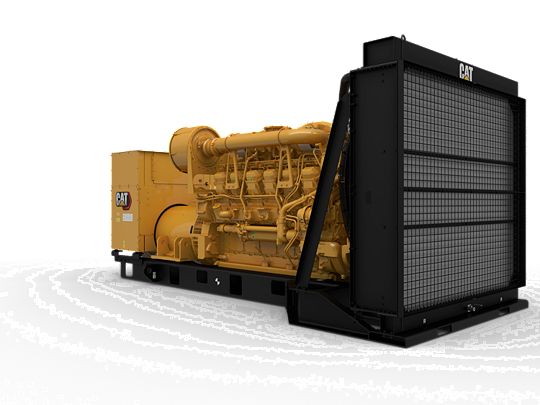

3512B (50 Hz) Generator Set

Caterpillar is leading the power generation market with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Documents




Compare




Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements


Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight


SR5 Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation


Cat ECS Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements


Cooling System

  • Designed to operate in standard ambient temperatures up to 50?C (122?F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities


Certifications

  • IBC seismic certification
  • EU Declaration of Conformity
  • EU Declaration of Incorporation
  • EU Eurasian Conformity (EAC)


One Safe Source

  • Components used in the generator set are selected at the design stage to provide optimum package performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system


Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements


Generator Set Specifications

Standby Rating1625/1600/1500 kVA
Prime Power Rating1500/1360 kVA
Emissions/Fuel StrategyLow Fuel, Low Emissions
Voltage380 to 415 Volts
Frequency50 Hz
Speed1500 rpm
Duty CycleStandby, Mission Critical, Prime
Maximum Rating1625 kVA
Minimum Rating1320 kVA

Engine Specifications

Engine Model3512B TA, V-12, 4-Stroke Water-Cooled Diesel
Bore170mm6.69in
Stroke190mm7.48in
Displacement51.8l3161.03in³
Compression Ratio14.0:1
AspirationTA
Fuel SystemElectronic Unit Injection
Governor TypeADEM™ A3

Generator Set Dimensions

Length - Minimum5487mm216in
Length - Maximum5488mm216.1in
Width - Minimum2286mm90in
Width - Maximum2286mm90in
Height - Minimum2420mm95.3in
Height - Maximum2420mm95.3in
Dry Weight - Genset (minimum)11357kg25038lb
Dry Weight - Genset (maximum)11647kg25677lb

360° Exterior View

360° Exterior view. Double click on the image to zoom in on any area of the product.
