3516C Generator Set
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Documents
- Electric Power Ratings Guide
- 3516C, 60 Hz, 1650-2000 ekW, U.S. EPA Stationary Emergency (Tier 2) Spec Sheet
- 3516C 60Hz, 2045-2250 ekW, U.S. EPA Stationary Emergency (Tier 2) Spec Sheet
- 3516C 60 Hz, 2050-2500 ekW, U.S. EPA Stationary Emergency (Tier 2) Spec Sheet
- 3516C, 60 Hz, Prime-DCP 1825 ekW, U.S. EPA Stationary Emergency (Tier 2) Spec Sheet
- 3516C 60Hz, Prime-DCP 2045 ekW, U.S. EPA Stationary Emergency (Tier 2) Spec Sheet
- 3516C 60 Hz, Prime-DCP 2250 ekW, U.S. EPA Stationary Emergency (Tier 2) Spec Sheet
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
Cat ECS Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50?C (122?F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- UL 2200 Listed
- CSA
- IBC seismic certification
- OSHPD pre-approval
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Standby Rating | 2500/2250/2000 ekW |
|---|---|
| Prime Power Rating | 2250/2045/1825 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 2 |
| Voltage | 380 to 13800 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Maximum Rating | 2500 ekW |
| Minimum Rating | 1650 ekW |
Engine Specifications
| Engine Model | 3516C, ATAAC, V-16,4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 170mm6.69in |
| Stroke | 190mm7.48in |
| Stroke - HD | 215mm8.46in |
| Displacement | 78l4764.73in |
| Compression Ratio | 14.7:1 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | Adem™3 |
Generator Set Dimensions
| Length - Minimum | 6761mm266.2in |
|---|---|
| Length - Maximum | 7019mm276.3in |
| Width - Minimum | 2339mm92.1in |
| Width - Maximum | 2339mm92.1in |
| Height - Minimum | 2997mm118in |
| Height - Maximum | 2997mm118in |
| Dry Weight - Genset (minimum) | 16275kg35880lb |
| Dry Weight - Genset (maximum) | 17590kg38780lb |

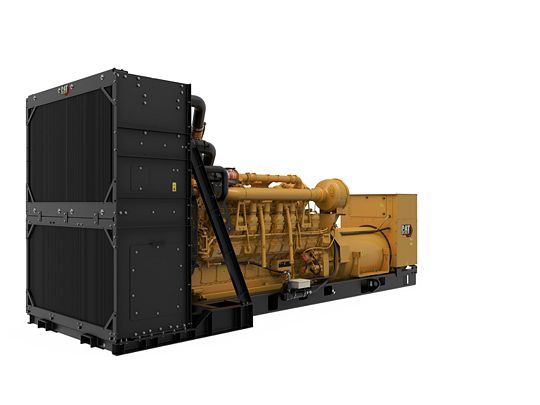

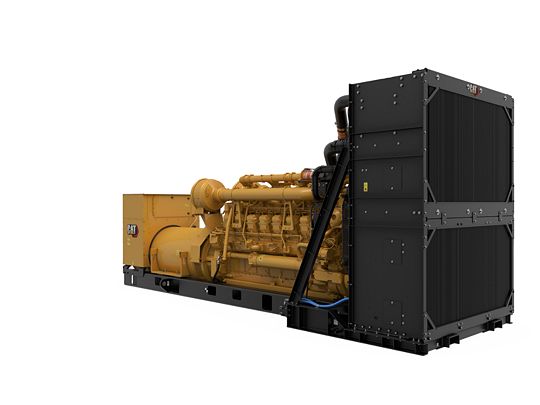

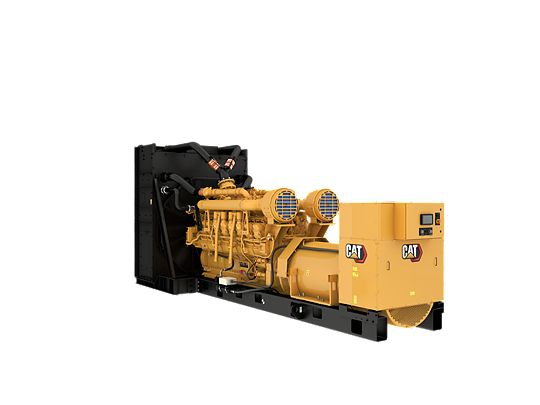

360 Exterior View
360 Exterior view. Double click on the image to zoom in on any area of the product.
