3516E Low Voltage Generator Set
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Documents
Cat Generator Set Package
Cat Generator Set Package
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
Cat Diesel Engine
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
SR5 Alternator
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP 4 Control Panel
EMCP 4 Control Panel
EMCP 4 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
Cooling System
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Certifications
Certifications
- EU Declaration of Conformity
- EU Declaration of Incorporation
- Eurasian Conformity (EAC)
- Telecommunication Lab of China
One Safe Source
One Safe Source
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
World Wide Product Support
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Standby Rating | 3000 kVA (3100 kVA without fan) |
|---|---|
| Prime Power Rating | 2750 kVA (2850 kVA without fan) |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Voltage | 380 to 11000 volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Mission Critical, Prime |
| Maximum Rating | 3000 kVA (3100 kVA without fan) |
| Minimum Rating | 2750 kVA (2850 kVA without fan) |
Engine Specifications
| Engine Model | 3516E, SCAC, V-16, 4-Stroke, Water-Cooled Diesel |
|---|---|
| Bore | 170mm6.69in |
| Stroke | 215mm8.46in |
| Displacement | 78.1l4766in |
| Compression Ratio | 14:01 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | Adem™ A5 |
Generator Set Dimensions
| Length - Maximum | 7538mm296.8in |
|---|---|
| Width - Maximum | 2216mm87.2in |
| Height - Maximum | 3391mm133.5in |
| Dry Weight - Genset (maximum) | 19750kg43541lb |

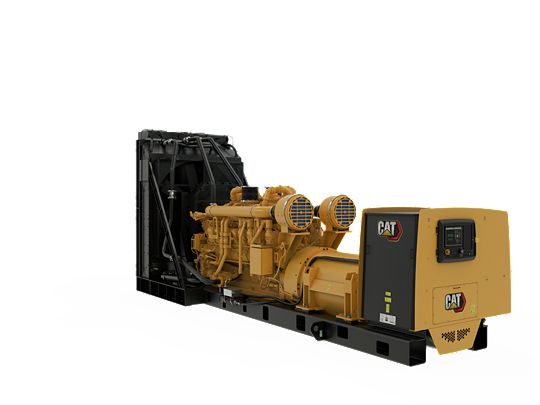

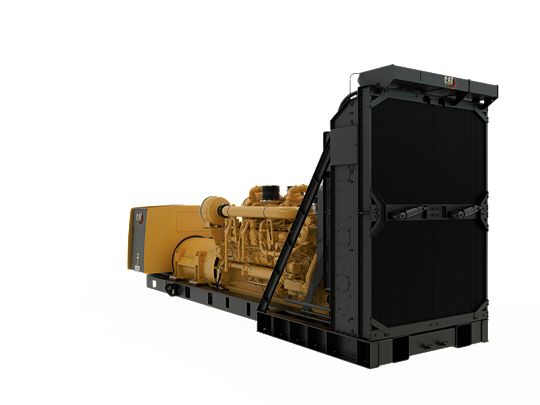

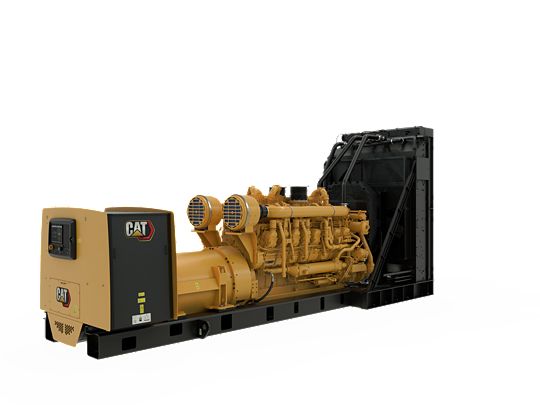

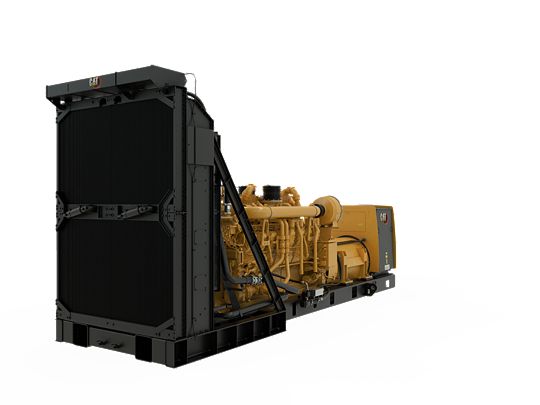

360? Exterior View
360? Exterior view. Double click on the image to zoom in on any area of the product.
