3516E Generator Set
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Documents
- Electric Power Ratings Guide
- 3516E, 50 Hz, 2950 - 3500 kVA, Tier 2 Spec Sheet
- 3516E, 50Hz 2950 - 3500 kVA Low NOx Spec Sheet
- 3516E, 50Hz 2725 - 3000 kVA, Tier 2 (EPA ESE) with Low NOx Spec Sheet
- 3516E, 50 Hz, 2950/3175 kVA, Prime-DCP, Tier 2 Equivalent US. EPA Stationary Emergency Spec Sheet
- 3516E, 50 Hz, 2950/3175 kVA, Prime-DCP, Low NOx Spec Sheet
- 3516E, 50 Hz, 2725 kVA, Prime-DCP, Tier 2 (EPA ESE) with Low NOx Spec Sheet
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
Cat ECS Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50?C (122?F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- EU Declaration of Conformity
- EU Declaration of Incorporation
- Eurasian Conformity (EAC)
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

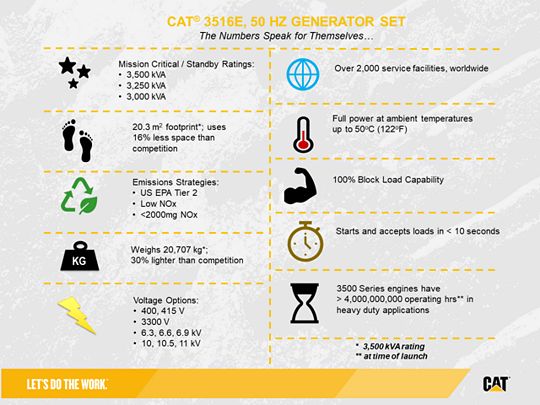

Generator Set Specifications
| Standby Rating | 3500/3250/3000 kVA |
|---|---|
| Prime Power Rating | 3175/2950/2725 kVA |
| Emissions/Fuel Strategy | U.S. EPA Cert. Tier 2 / Low NOx |
| Voltage | 380 to 11000 volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Mission Critical, Prime |
| Maximum Rating | 3500 kVA |
| Minimum Rating | 2725 kVA |
Engine Specifications
| Engine Model | 3516E, V-16, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 170mm6.69in |
| Stroke | 215mm8.46in |
| Displacement | 78.1l4765in³ |
| Compression Ratio | 14.0:1 |
| Aspiration | ATAAC |
| Fuel System | Electronic Unit Injection |
| Governor Type | Adem™ A5 |
Generator Set Dimensions
| Length - Minimum | 7954mm313.4in |
|---|---|
| Length - Maximum | 8088mm318.4in |
| Width - Minimum | 2640mm104in |
| Width - Maximum | 2640mm104in |
| Height - Minimum | 3342mm131.6in |
| Height - Maximum | 3342mm131.6in |
| Dry Weight - Genset (minimum) | 20380kg44930lb |
| Dry Weight - Genset (maximum) | 20707kg45651lb |

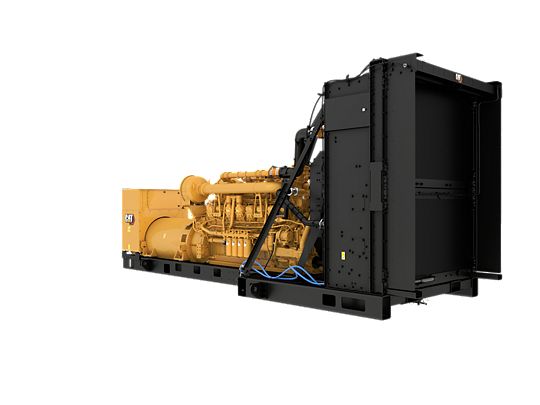

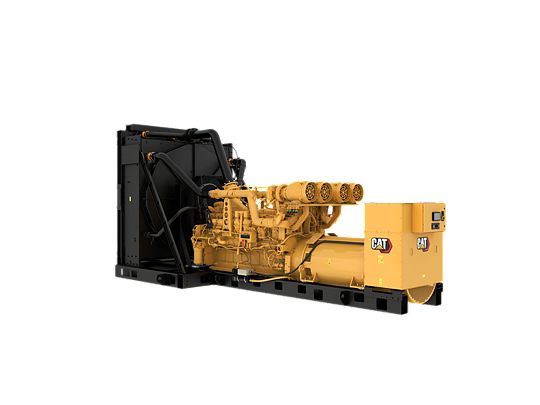

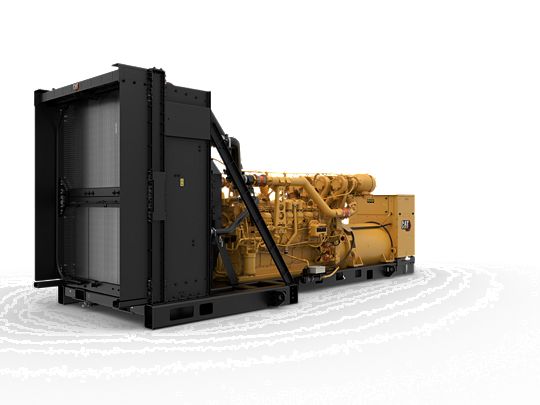

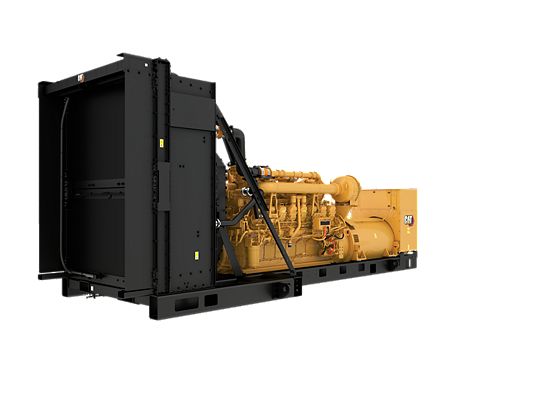

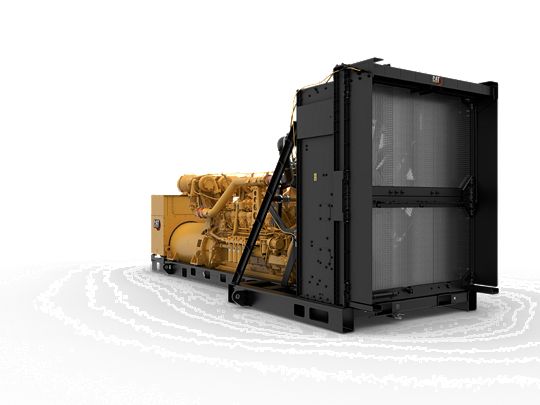

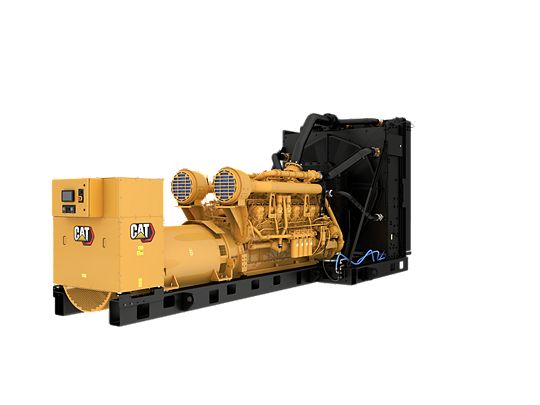

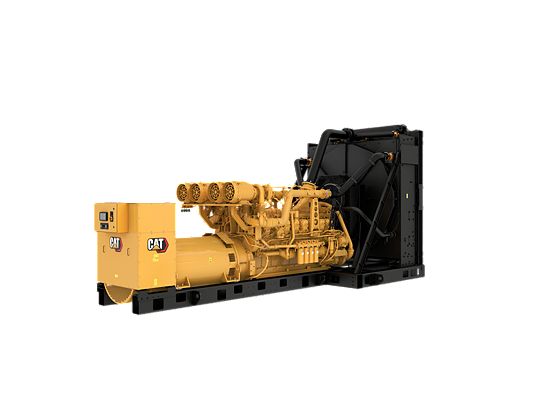

3516E 3250 & 3500 kVA
3516E 3250 & 3500 kVA. Double click on the image to zoom in on any area of the product.
