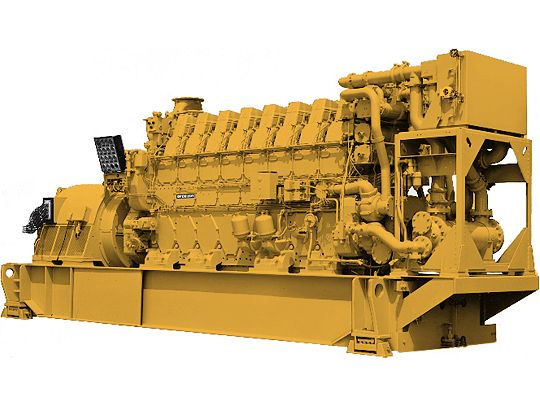

3608 Generator Set (Medium Speed)
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability,reliability, and cost-effectiveness.
Documents
Cat Diesel Engine
Cat Diesel Engine
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Generator
Generator
Generator
- Matched to the performance and output characteristics of Cat engines
- Industry leading mechanical and electrical design
- Industry leading motor starting capabilities
- High Efficiency
Worldwide Product Support
Worldwide Product Support
Worldwide Product Support
- Cat dealers provide extensive post-sale support including maintenance and repair agreements.
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S????O????S????????? program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
Full Range of Attachments
Full Range of Attachments
Full Range of Attachments
- Wide range of bolt-on system expansion attachments, factory designed and tested Flexible packaging options for easy and cost effective installation
Generator Set Specifications
| Maximum Rating | 3575 kVA |
|---|---|
| Minimum Rating | 2363 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Frequency | 50 Hz |
| Speed | 750 & 1000 rpm |
| Duty Cycle | Standby, Prime, Continuous |
Engine Specifications
| Engine Model | 3608 I-8,4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 280mm11in |
| Stroke | 300mm11.8in |
| Displacement | 148l9064in³ |
| Compression Ratio | 13:01 |
| Aspiration | TA |
| Fuel System | Direct unit injection |
| Governor Type | Generator Set Monitoring System (GMS) |
Generator Set Dimensions
| Length - Maximum | 10261.7mm404in |
|---|---|
| Width - Maximum | 2530.3mm99.62in |
| Height - Maximum | 3977.7mm156.6in |
| Dry Weight - Genset (maximum) | 41390kg91050lb |
