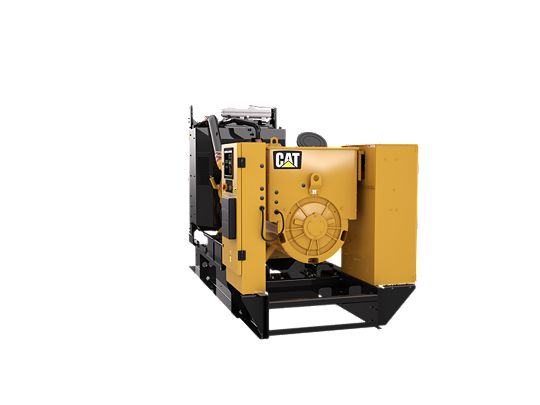

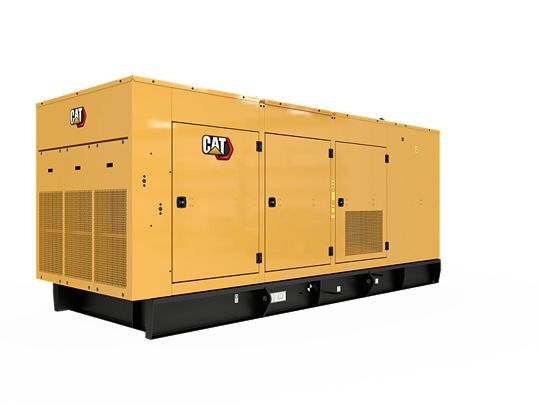

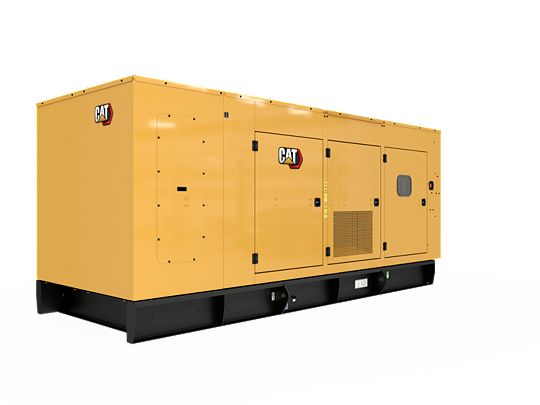

C13 Generator Set
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Documents
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
UL2200 Listed; CSA 22.2; Certification of Compliance – IBC Seismic; Dual IBC & HCAI
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Maximum Rating | 400 ekW |
|---|---|
| Minimum Rating | 320 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emerg Use |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Prime |
Engine Specifications
| Engine Model | C13 ACERT In-line 6, 4-cycle diesel |
|---|---|
| Bore | 130mm5.12in |
| Stroke | 157mm6.2in |
| Displacement | 12.5B763in³ |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Air to Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | Adem™A4 |
Generator Set Dimensions
| Length - Maximum | 4743mm186.7in |
|---|---|
| Width - Maximum | 2014mm79.3in |
| Height - Maximum | 2133mm84in |

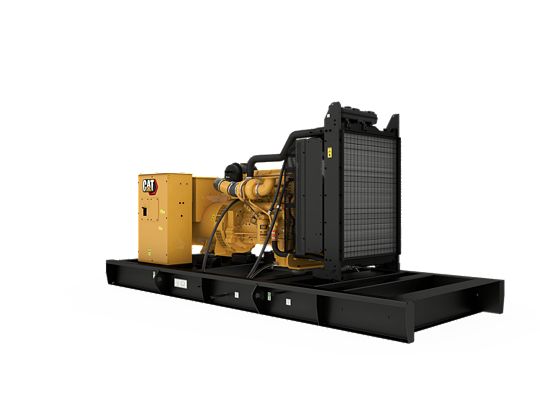

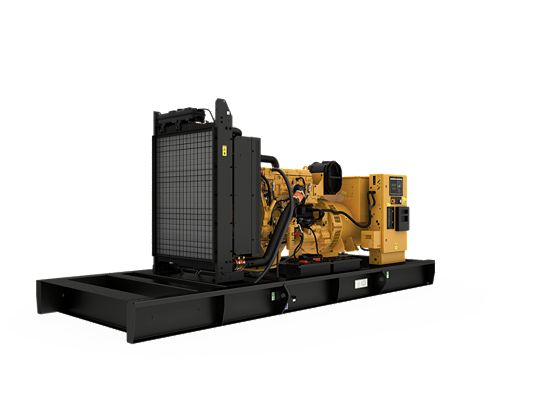

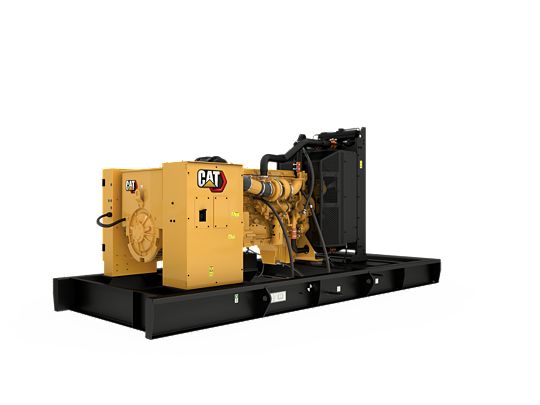

360° Exterior View, Short Skidbase
Short Skidbase
