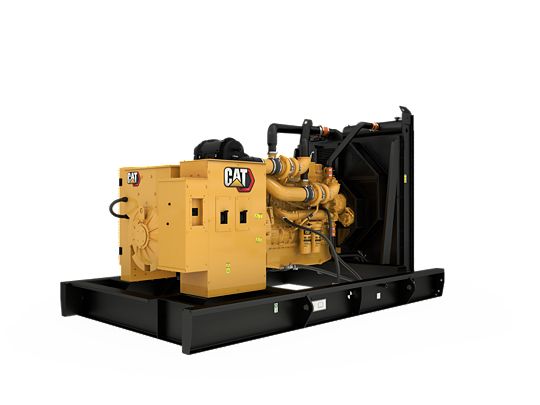

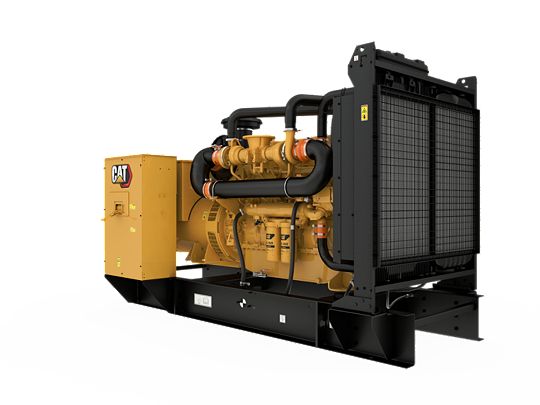

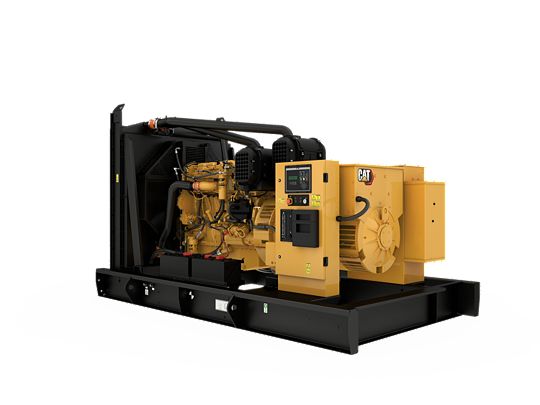

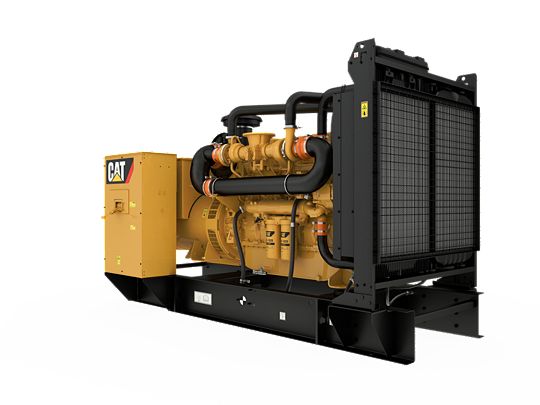

C18 Generator Set
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Documents
- Electric Power Ratings Guide
- C18, 60 Hz, 550 ekW Standby, 500 ekW Prime, TIER II Non-Road Spec Sheet
- C18, 60 Hz, 600 ekW Standby, 545 ekW Prime, TIER II Non-Road Spec Sheet
- C18, 60 Hz, 650 ekW Standby, 600 ekW Prime, EPA TIER II Spec Sheet
- C18, 60 Hz, 700 ekW Standby, 635 ekW Prime, EPA TIER II Spec Sheet
- C18, 60 Hz, 750 ekW Standby, 680 ekW Prime, EPA TIER II Spec Sheet
- C18, 60 Hz, 550-750 ekW Standby, 500-680 ekW Prime, EPA TIER III Spec Sheet
- C18 High Ambient Acoustic Enclosures
- C18 for Industrial Applications
- GCCP 1.2 Control Panel Data Sheet
- GCCP 1.5 Control Panel Data Sheet
Cat Generator Set Package
Cat Generator Set Package
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
Cat Diesel Engine
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
A-Frame Alternator
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.2 Control Panel
GCCP 1.2 Control Panel
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
Cooling System
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Certifications
Certifications
- UL2200 Listed; CSA 22.2; Certification of Compliance – IBC Seismic; Dual IBC & HCAI
One Safe Source
One Safe Source
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
Worldwide Product Support
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Maximum Rating | 750 ekW |
|---|---|
| Minimum Rating | 500 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Prime |
Engine Specifications
| Engine Model | Cat® C18 ATAACTM In-line 6, 4-cycle diesel |
|---|---|
| Bore | 145mm5.71in |
| Stroke | 183mm7.2in |
| Displacement | 18.1l1106.3in³ |
| Compression Ratio | 14:01 |
| Aspiration | Turbocharged Air to Air Aftercooled |
| Fuel System | Electronic unit injection |
| Governor Type | Electronic ADEM™ A4 |
Generator Set Dimensions
| Length - Maximum | 3512mm138in |
|---|---|
| Width - Maximum | 1690mm67in |
| Height - Maximum | 2222mm88in |
360° Exterior View

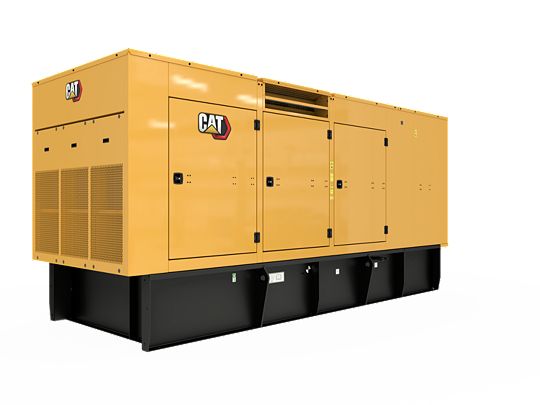

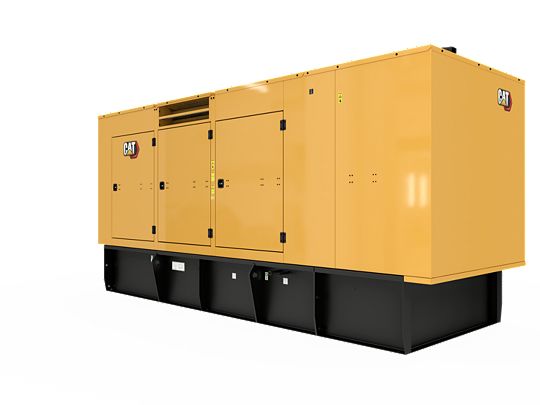

Enclosure
