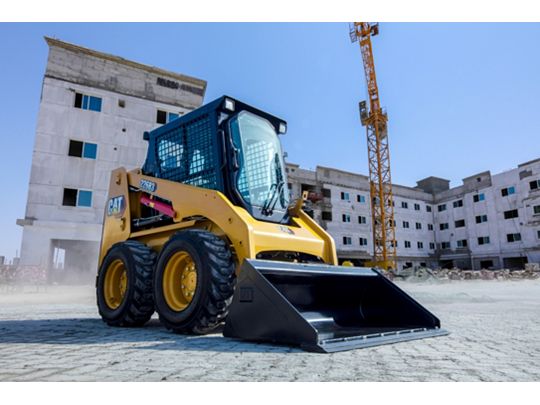

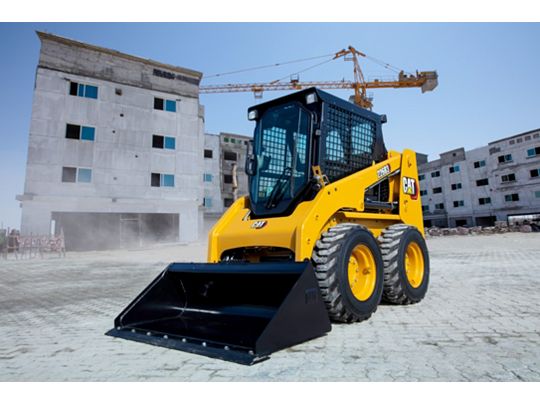

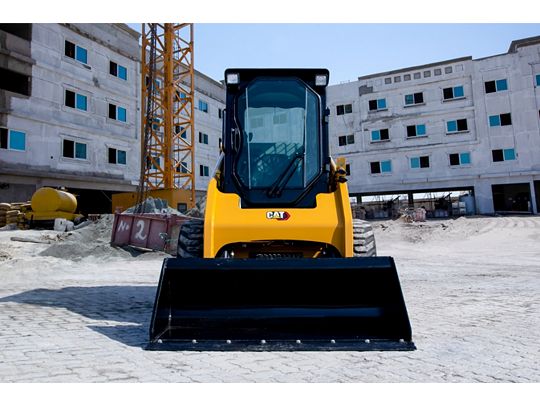

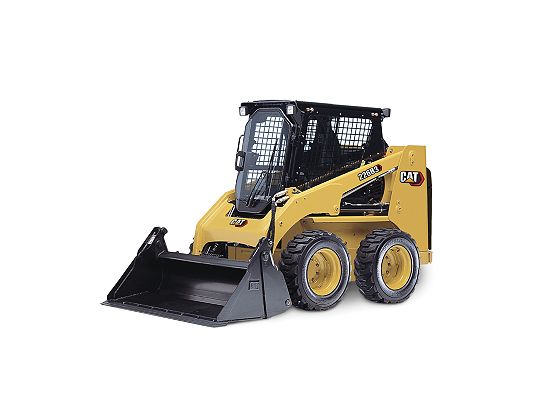

226B3 Skid Steer Loader
The Cat® B3 Series Skid Steer Loader, with its many work tool options, delivers outstanding performance to help you get more done and increase your bottom line. Spacious, ergonomic operator station and easy-to-use pilot operated joystick controls keep you comfortable throughout the work day. High performance power train, advanced hydraulic system and traditional Cat reliability improve your productivity in the toughest working conditions.
Documenten

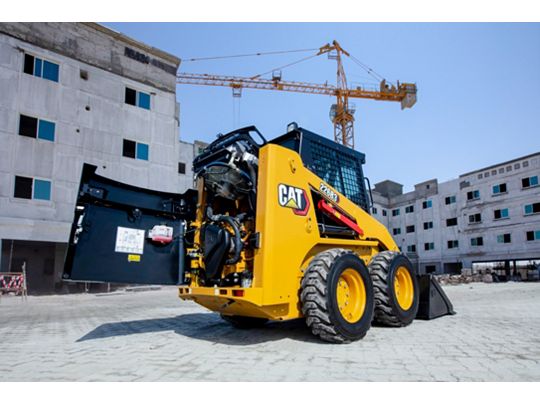

High Performance Hydraulic System
Maximum power and reliability are built into the machine's hydraulic system. In addition to providing power to the wheels, this system also provides the loader lift and tilt functions, powers the auxiliary circuit to drive work tools and drives the engine cooling fan. The hydraulic pumps are driven directly off the engine for maximum hydraulic performance and reliability - no belts are used. The hydraulic system also features:
- Standard auxiliary hydraulics to power work tools that are available through quick connect hydraulic couplings rigidly mounted to the loader arm.
- Cat ToughGuardâ„¢ hoses for increased reliability and durability.
All Day Comfort
Comfort and ease of operation have been designed into every aspect of the operator station. The wide, spacious interior and uncluttered floor provide a comfortable work environment with excellent head, shoulder and leg room to keep productivity high and fatigue low. The adjustable seat and low effort controls keep the operator comfortable throughout the work day.
The Right Tool for the Job
Get the most out of your machine with the comprehensive line of Cat Work Tools. Designed and built for optimum performance and durability, these tools deliver high productivity in a variety of applications to maximize the versatility and flexibility of the Cat Skid Steer Loader:
- Augers
- Backhoes
- Blades (angle, dozer)
- Buckets (general purpose, high capacity, dirt, utility, light material, multi purpose, industrial grapple, utility grapple)
- Brooms (angle, pickup, utility)
- Brushcutters
- Cold Planers
- Forks (pallet, industrial grapple, utility grapple, utility)
- Hydraulic Hammers
- Landscape Tillers
- Landscape Rakes
- Material Handling Arm
- Power Box Rakes
- Shear
- Snow Blowers
- Stump Grinders
- Trenchers
- Vibratory Compactors
- Wheel Saws
Engine
| Gross Power | 45.5kW61hp |
|---|---|
| Gross Power - SAE J1995:2014 | 45.5kW61hp |
| Displacement | 2.2l134in³ |
| Stroke | 100mm3.9in |
| Bore | 84mm3.3in |
| Engine Model | Cat® C2.2 T |
| Net Power - SAE 1349/ISO 9249 | 42kW56hp |
Operating Specifications
| Rated Operating Capacity | 680kg1500lb |
|---|---|
| Rated Operating Capacity with Optional Counterweight | 726kg1600lb |
| Tipping Load | 1360kg3000lb |
| Breakout Force - Tilt Cylinder | 1852kg4083lb |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted). |
Weights
| Operating Weight | 2641kg5822lb |
|---|---|
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted). |
Dimensions
| Wheel Base | 986mm39in |
|---|---|
| Length - With Bucket on Ground | 3233mm127in |
| Length - Without Bucket | 2519mm99in |
| Height - Top of Cab | 1950mm77in |
| Vehicle Width over Tires | 1525mm60in |
| Maximum Overall Height | 3709mm146in |
| Bucket Pin Height - Maximum Lift | 2854mm112in |
| Bucket Pin Height - Carry Position | 200mm8in |
| Reach - Maximum Lift/Dump | 505mm20in |
| Clearance at Maximum Lift and Dump | 2169mm85.4in |
| Ground Clearance | 195mm8in |
| Departure Angle | 26° |
| Maximum Dump Angle | 40° |
| Turn Radius from Center - Coupler | 1195mm47in |
| Turn Radius from Center - Bucket | 1944mm77in |
| Rack Back Angle - Maximum Height | 81° |
| Bumper Overhang - Behind Rear Axle | 967mm38in |
| Maximum Reach with Arms Parallel to Ground | 1291mm51in |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Turn Radius from Center - Machine Rear | 1502mm59in |
Cab
| ROPS | ISO 3471:2008 |
|---|---|
| FOPS | ISO 3449:2005 Level I |
Service Refill Capacities
| Chain Box - Each Side | 6l1.6gal (US) |
|---|---|
| Cooling System | 10l2.6gal (US) |
| Engine Crankcase | 10l2.6gal (US) |
| Fuel Tank | 58l15.4gal (US) |
| Hydraulic System | 55l14.5gal (US) |
| Hydraulic Tank | 35l9.2gal (US) |
Hydraulic System
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 37.7kW50.6hp |
|---|---|
| Hydraulic Flow - High Flow - Loader Hydraulic Flow | 104L/min27gpm |
| Hydraulic Flow - High Flow - Loader Hydraulic Pressure | 23000kPa3335psi |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 61L/min16gpm |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 23000kPa3335psi |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 23.2kW31.1hp |
Power Train
| Travel Speed - Forward or Reverse | 12.7km/h7.9mile/h |
|---|
