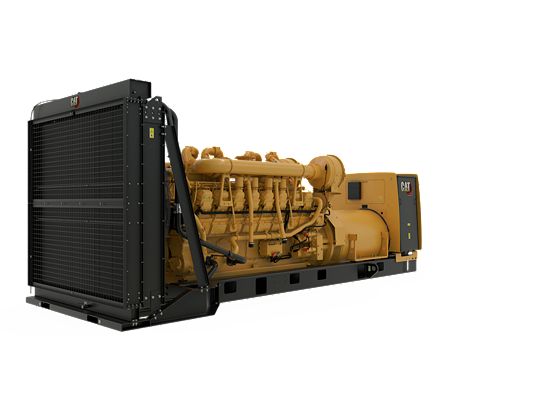

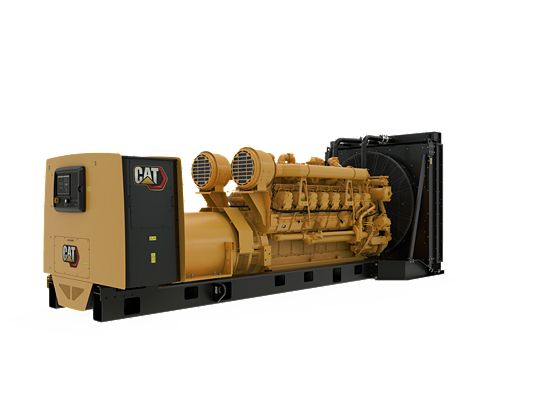

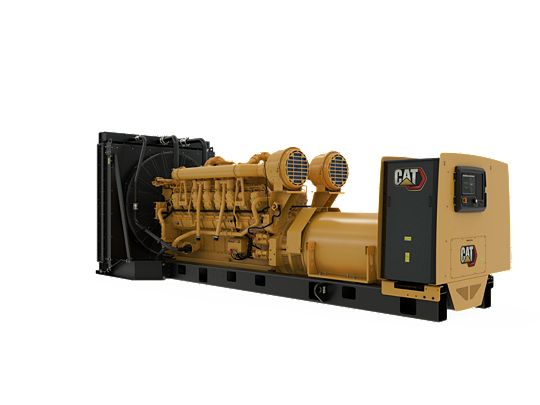

3516B Generator Set

2000 - 2500 kVA at 50 Hz Diesel Genset
The 3516B generator set has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance that matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.
Q. Does this generator comply with ISO 8528 guidelines?
A. Yes, the 3516B, like all of our generators, is tested in accordnace the load steps outlined in with ISO 8528, Part 5.

Documenten




Vergelijk




Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements


Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight


SR5 Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation


EMCP 4 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements


Cooling System

  • Designed to operate in standard ambient temperatures up to 50?C (122?F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities


Certifications

  • EU Declaration of Conformity
  • EU Declaration of Incorporation
  • Eurasian Conformity
  • Telecommunication Lab of China


One Safe Source

  • Components used in the generator set are selected at the design stage to provide optimum package performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system


Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements


Generator Set Specifications

Standby Rating2500 kVA
Prime Power Rating2275 kVA
Emissions/Fuel StrategyLow Fuel, Low Emissions
Voltage380 to 415 Volts
Frequency50 Hz
Speed1500 rpm
Duty CycleStandby, Mission Critical, Prime, Continuous
Maximum Rating2500 kVA
Minimum Rating2000 kVA

Engine Specifications

Engine Model3516B TA, V-16, 4-Stroke Water-Cooled Diesel
Bore170mm6.69in
Stroke215mm8.46in
Displacement78l4764.73in
Compression Ratio15.5:1
AspirationTA
Fuel SystemElectronic unit injection
Governor TypeAdem™3

Generator Set Dimensions

Length - Maximum6282mm247.3in
Width - Maximum2286mm90in
Height - Maximum2494mm98.2in
Dry Weight - Genset (maximum)15535kg34250lb

360? Exterior View

360? Exterior view. Double click on the image to zoom in on any area of the product.
