C175-20

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Documenten




Vergelijk




Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements


Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight


SR5 Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation


Cat ECS Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements


Cooling System

  • Designed to operate in standard ambient temperatures up to 50°C (122°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities


Certifications

  • EU Declaration of Conformity
  • EU Declaration of Incorporation
  • Eurasian Conformity (EAC)
  • IBC seismic certification


One Safe Source

  • Components used in the generator set are selected at the design stage to provide optimum package performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system


Generator Set Specifications

Standby Rating4000(no fan)/3900 kVA
Prime Power Rating3600(no fan)/3500 kVA
Emissions/Fuel StrategyLow Fuel, Low Emissions
Voltage400 to 11000 Volts
Frequency50 Hz
Speed1500 RPM
Duty CycleStandby, Mission Critical, Prime, Continuous
Maximum Rating4000 kVA
Minimum Rating3150 kVA

Engine Specifications

Engine ModelC175-20 SCAC, V-20, 4-Stroke Water-Cooled Diesel
Bore175mm6.89in
Stroke220mm8.66in
Displacement105.8l6456.31in³
Compression Ratio15.3:1
AspirationTurbo Aftercooled
Fuel SystemCommon Rail
Governor TypeADEM? A4

Generator Set Dimensions

Length - Minimum6711mm264.2in
Length - Maximum8402mm330.8in
Width - Minimum2162mm85.1in
Width - Maximum3247mm127.8in
Height - Minimum2224mm87.6in
Height - Maximum3827mm150.7in
Dry Weight - Genset (minimum)25000kg55100lb
Dry Weight - Genset (maximum)30000kg66200lb

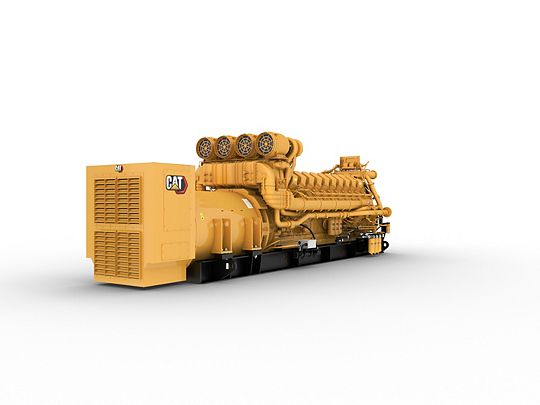

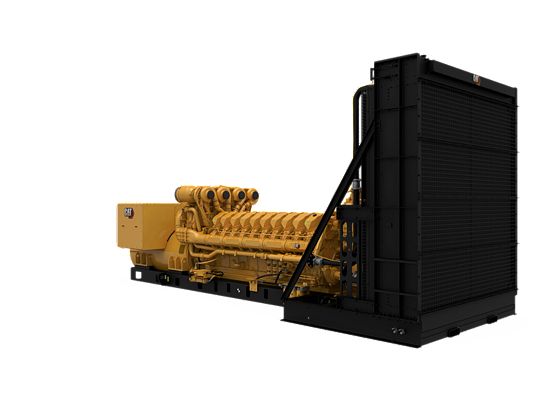

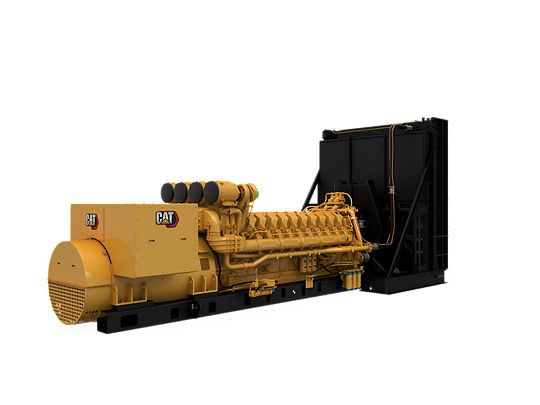

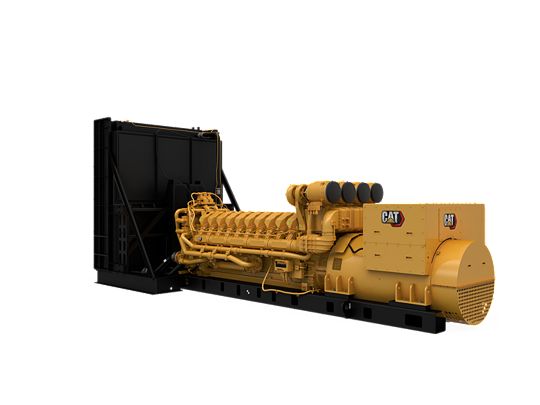

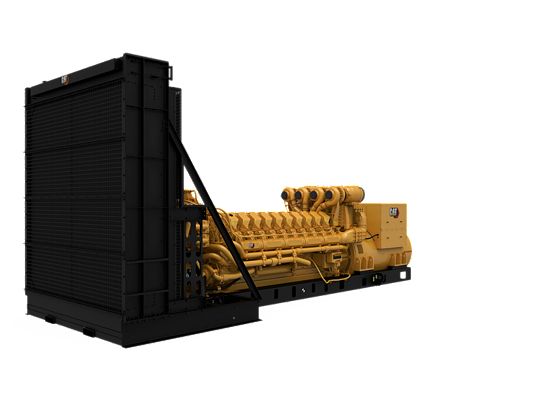

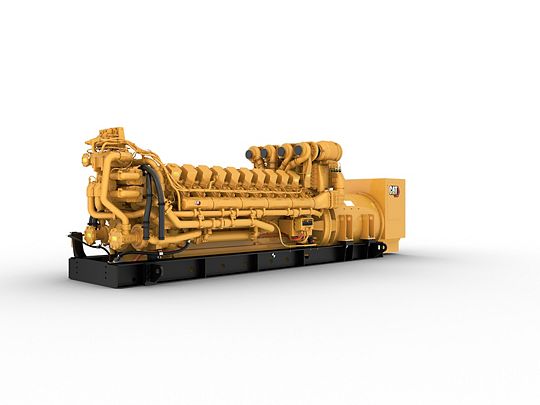

360° Exterior View

360° Exterior view. Double click on the image to zoom in on any area of the product.
