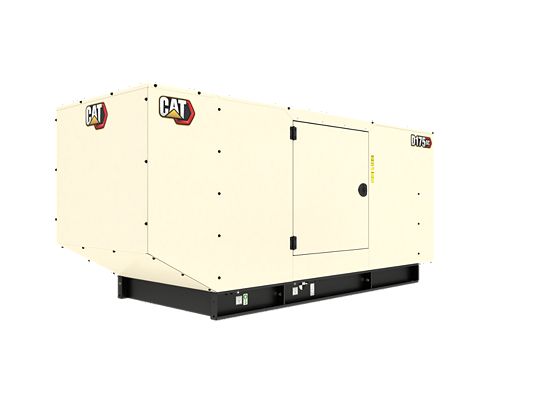

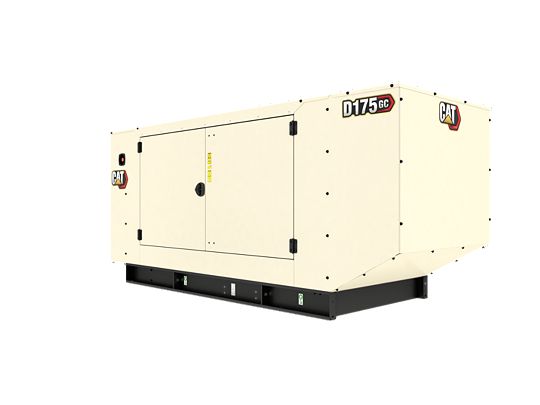

D175 GC Generator Set
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Documenten
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- UL 2200 Listed
- ULC Certification Available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Maximum Rating | 175 ekW |
|---|---|
| Minimum Rating | 175 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 3 |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
Engine Specifications
| Engine Model | C7.1 I-6, 4-Cycle Diesel |
|---|---|
| Bore | 105mm4.1in |
| Stroke | 135mm5.31in |
| Displacement | 7.01l427.8in³ |
| Compression Ratio | 16.7:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled |
| Fuel System | Electronic, Common Rail |
| Governor Type | ADEM™A4 |
Generator Set Dimensions
| Length - Maximum | 2634mm103.7in |
|---|---|
| Width - Maximum | 1300mm51.2in |
| Height - Maximum | 1492mm58.7in |
| Dry Weight - Genset (maximum) | 1697kg3741lb |
360° Exterior View (HTML)
360° Exterior view. Double click on the image to zoom in on any area of the product.

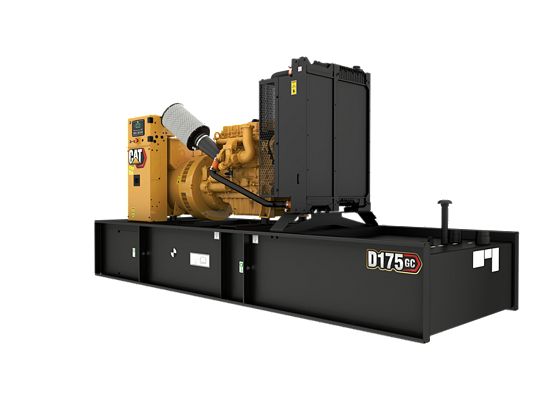

360° Interior View (HTML)
360° Interior view. Double click on the image to zoom in on any area of the product.
