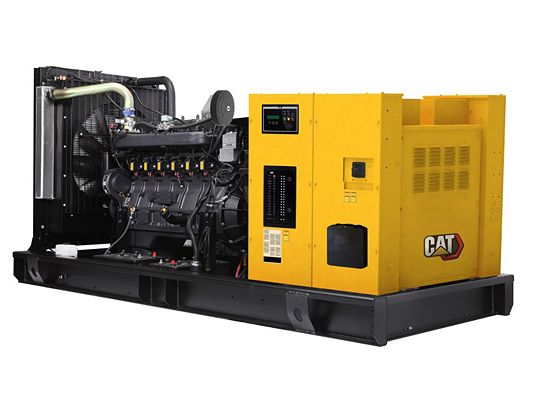

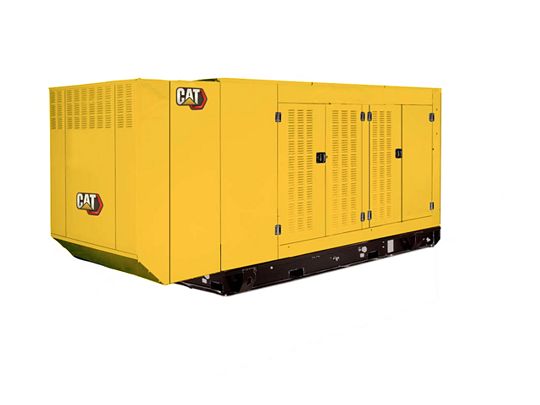

DG200-2S (Single-phase)
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Engine
- Four-stroke-cycle gas engine combines consistent performance and excellent fuel economy with minimum weight
Alternator
- Matched to the performance and output characteristics of Cat engines
- Industry leading mechanical and electrical design
- Industry leading motor starting capabilities
- High Efficiency
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Design Criteria
- The generator set facilitates compliance with NFPA 110 and meets ISO 8528-5 requirements for transient response
- Cooling system designed to operate in 50°C/122°F ambient temperatures with an air flow restriction of 0.5 in. water
UL 2200 / CSA - Optional
- UL 2200 Listed packages
- CSA Certified
- Certain restrictions may apply
- Consult with your Cat® Dealer
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Frequency | 60 Hz |
|---|---|
| Natural Gas Rating | 200 eKW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Non-Emergency Application |
| Displacement | 14.17l864.71in³ |
| Fuel Type | Natural Gas |
| Speed | 1800 rpm |
Engine Specifications
| Engine Model | 14.2 L Spark - Ignited |
|---|---|
| Fuel System | Carburetor, Down Draft |
| Aspiration | Turbocharged-Aftercooled |
| Governor Type | Electronic |
| Compression Ratio | 9.5:1 |
| Bore | 134.87mm5.31in |
| Stroke | 165.1mm6.5in |
Generator Set Dimensions
| Length | 3250mm127.95in |
|---|---|
| Width | 1344.5mm52.93in |
| Height | 1711.2mm67.37in |
| Weight | 2610.9kg5756lb |
