G3520C Gas Generator
G3520C Gas Generator
Documenten
Cat G3520C Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR4B or SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
EMCP 4.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Continuous Rating | 2050 ekW |
|---|---|
| Fuel Type | Natural Gas, Biogas, Coal Gas |
| Maximum Electrical Efficiency | 40.10% |
| Maximum Standby Rating | 2050 |
| Frequency | 50 / 60 Hz |
| RPM | 1200 / 1500 / 1800 rpm |
Engine Specifications
| Engine Model | G3520C |
|---|---|
| Displacement | 86l5270in³ |
| Aspiration | TA |
| Bore | 170mm6.7in |
| Stroke | 190mm7.5in |
| Fuel System | Natural Gas, Biogas, Coal Gas |
| Compression Ratio | 11.3 |
Generator Set Dimensions
| Length | 6312mm249in |
|---|---|
| Width | 1830mm79in |
| Height | 2340mm92in |
| Dry Weight - Genset | 17215kg37959lb |
| Weight | 17215kg37953lb |

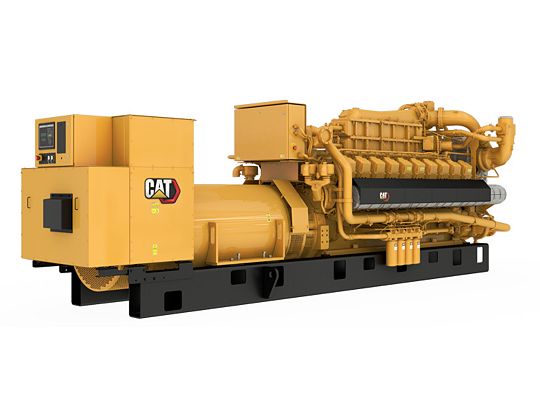

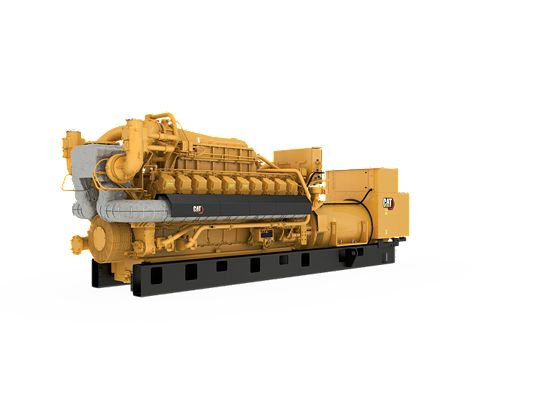

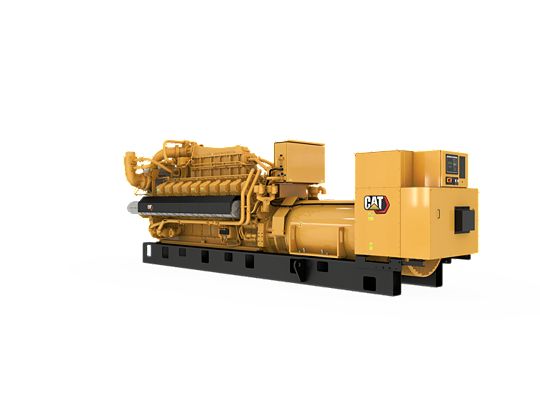

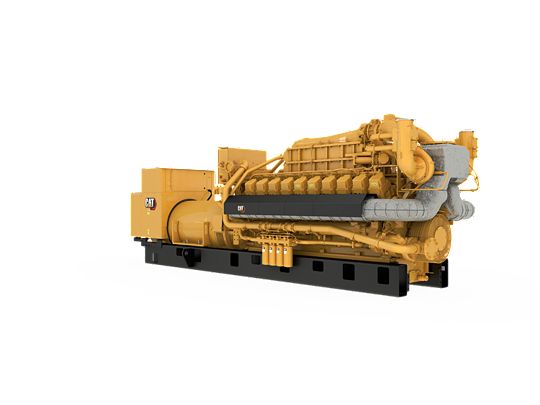

360° Exterior View (HTML)
360° Exterior view. Double click on the image to zoom in on any area of the product.
